Case Labeler Machine
Case Labeler APEL50C

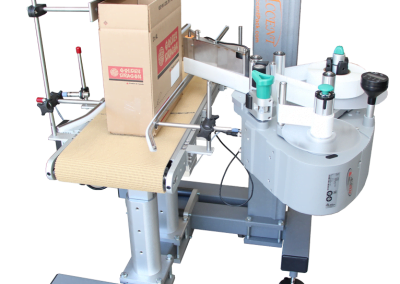

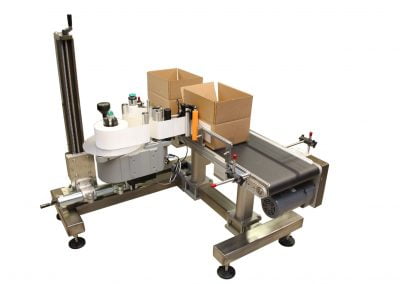

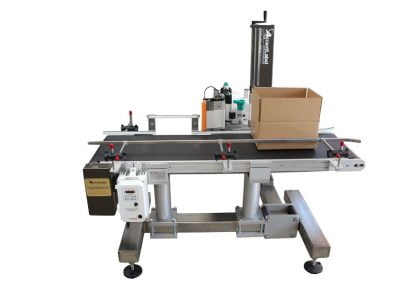

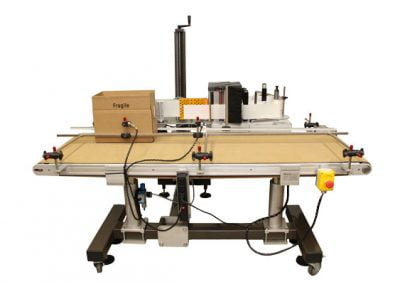

The APEL50 Case Labeler Machine manufactured by Accent Label Automation is designed for labeling onto erected corrugated boxes.
This system is custom built to the application as almost all our equipment is. It can be fitted into the tightest of spaces to accommodate your production environment. This system is independent from any case erector or sealer but can be a great addition to it. Many models of erector don’t allow for sufficient room to place a label head or the practicality of access to the machine is just not there.
With the APEL50 Case Labeler Machine you have the flexibility to have case labeling done right after the case erector, the case taper or anywhere on your floor.
From the centering belts to the top hold down trap belt or the label head dispense speed, all components are encoded that a single selection of conveyor speed on the HMI will change all relevant speed parameters for the front and back labeling machine.
WHAT DOES IT HAVE?
- Novexx Label Head Model XLS204
- Wedge Dispense Edge
- Stepper Driven Motor at 130′ or 40m maximum dispensing speed
- Label Counter, Missing Label Detection and Auto Teach
- Label Accuracy at dispensing edge +/- 0.5 mm
- Max. 4″ (101mm) Label Width and 12″ (304.8mm) Supply Roll
- 3′ long rough top case belt conveyor with Leveling Feet
- Integrated Support Frame
- Fully Adjustable Guide Railing
WHAT COULD IT HAVE?
- Up to 6″ or even 9″ Label height
- Print Apply via the Novexx ALX or XPA series label print applicator
- LA-SO Swing Arm for front and side application
- Conveyor width and length modification
